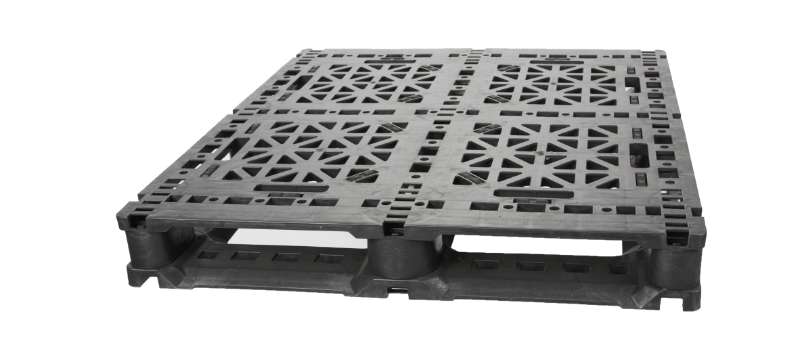

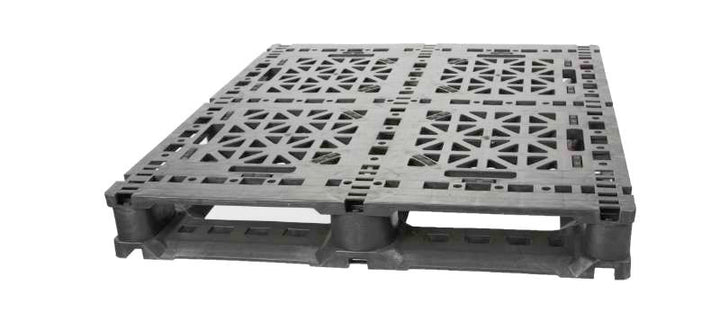

40x48 Mid Duty Pallet with 6 Runners
PVGP4840MV006R0
Large order? Contact us or call (877) 227-6369.

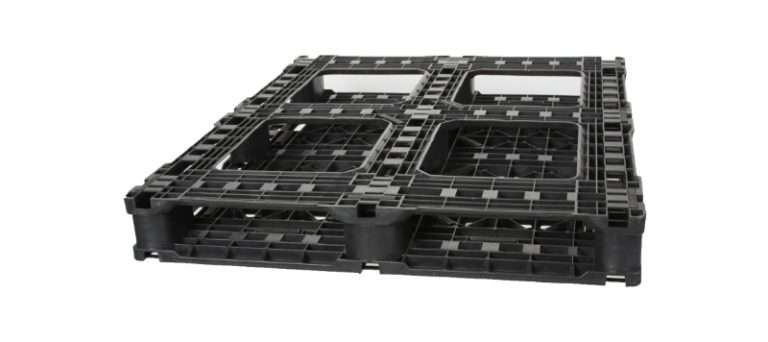

The GS MVP is a 6-runner plastic pallet built to scale from light-duty storage up to serious racking capacity within a single product line. With four rod configurations ranging from 800 lbs to 3,400 lbs of racking capacity, it covers a wide range of warehouse needs without switching pallet families — making it a good fit for operations that want to standardize on one footprint across multiple load classes.
Key Features
- 48" x 40" x 5.62" Footprint – Standard GMA size fits existing rack systems, trailers, and warehouse layouts
- Up to 25,000 lb Static Load / 5,000 lb Dynamic Load – Static load capacity increases with rod configuration
- Racking Capacity from 800–3,400 lbs – Widest racking range in this pallet family, choose the rod count that matches your load
- 20 Top-Deck Grommets / 10 Bottom-Runner Grommets – Standard drainage/venting pattern
- Weighs 42–62 lbs – Depending on rod configuration
Specifications
| Variant | Part Number | Static Load | Racking Capacity | Weight |
| 6-Runner / 0 Rod | MV.4840.6R0 | 15,000 lbs | 800 lbs | 42 lbs |
| 6-Runner / 3 Rod | MV.4840.6R3 | 25,000 lbs | 1,800 lbs | 48 lbs |
| 6-Runner / 5 Rod | MV.4840.6R5 | 25,000 lbs | 2,500 lbs | 52 lbs |
| 6-Runner / 10 Rod | MV.4840.6R10 | 25,000 lbs | 3,400 lbs | 62 lbs |
